PSA Oxygen Generator

Twin-tower oxygen generation system utilizing pressure swing adsorption (PSA) technology

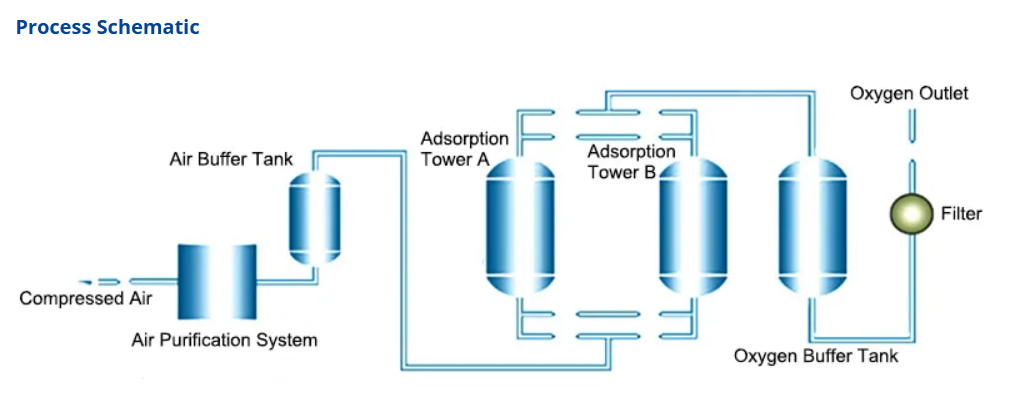

Two adsorption tower will be installed in parallel in PSA oxygen generator, one tower begins the adsorption phase while other tower regenerates by de-pressurizing. The PLC controller manages process valves with built-in logic for an automatic stop/start for continuous oxygen production. The whole system is composed of air purification system, air storage tank, separating system of nitrogen and oxygen, and oxygen buffer tank.

PSA Oxygen Generator

Twin-tower oxygen generation system utilizing pressure swing adsorption (PSA) technology

Two adsorption tower will be installed in parallel in PSA oxygen generator, one tower begins the adsorption phase while other tower regenerates by de-pressurizing. The PLC controller manages process valves with built-in logic for an automatic stop/start for continuous oxygen production. The whole system is composed of air purification system, air storage tank, separating system of nitrogen and oxygen, and oxygen buffer tank.

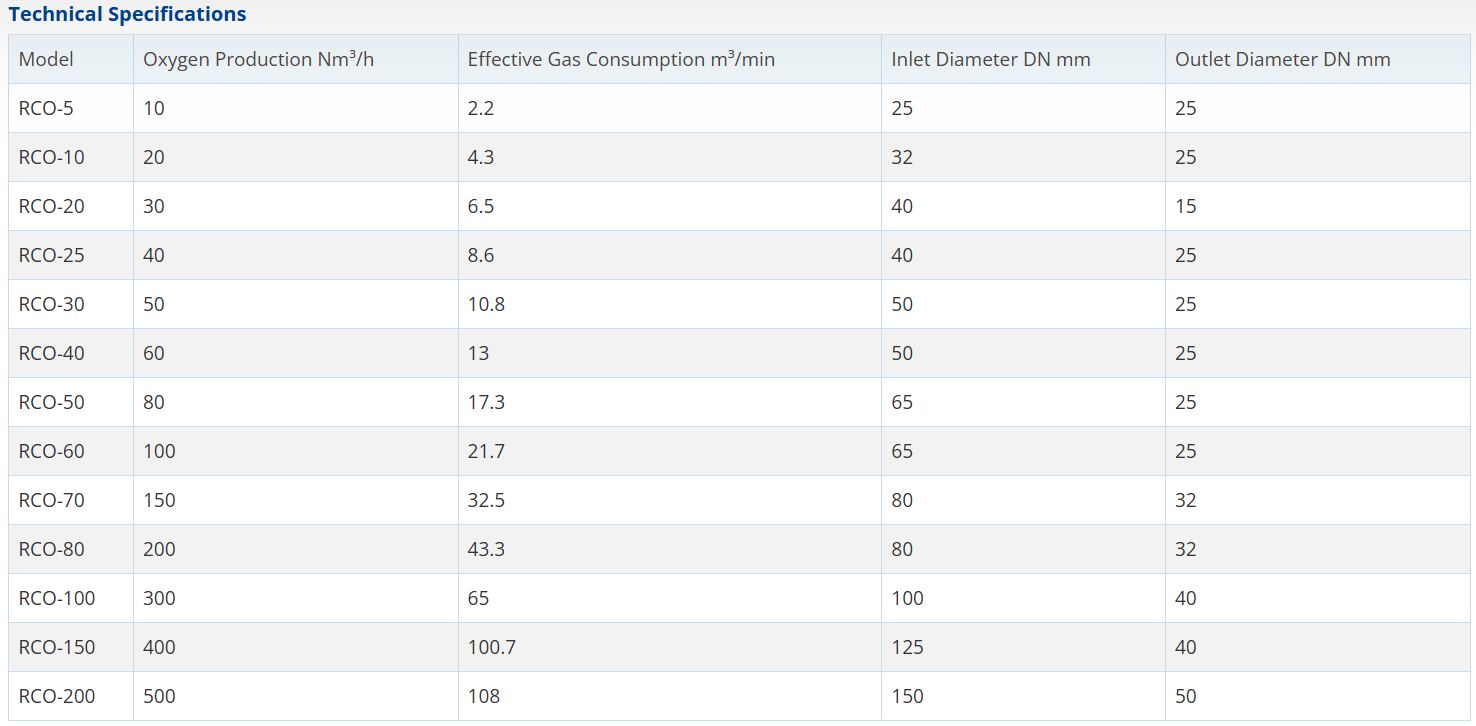

Key Parameters

Oxygen capacity: 5-200Nm³/h

Oxygen purity: 90%-94%

Oxygen pressure: 0-0.5Mpa

Oxygen dew point: -40℃ (atmospheric pressure)
