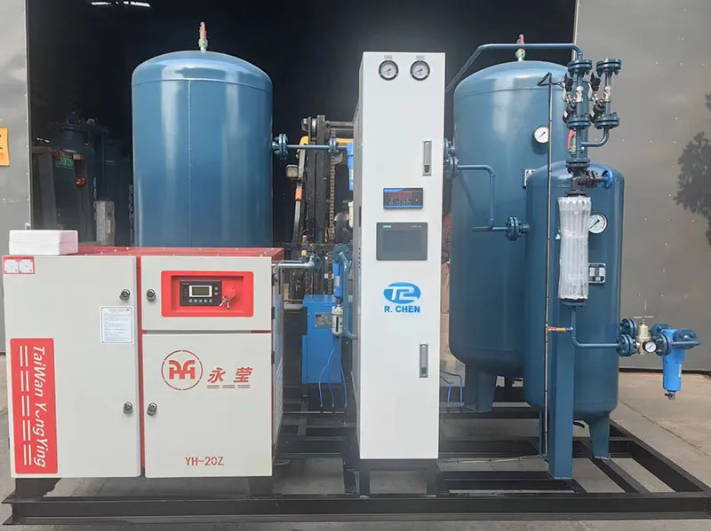

Modular Nitrogen Generator

Skid-mounted nitrogen generation system
Our modular nitrogen generator has a compact structure, adopting non-pressure container molded in aluminum alloy die-casting and pipeline made of high strength alloy steel with quick-connect fittings. The installation process is convenient with no need for extra painting. Compared with traditional nitrogen generator, it occupies less space, which makes it more suitable for application scenarios with high requirements for installation space, and related pressured containers report and inspection. Our modular nitrogen generator can apply to various industries, including but not limited to electronics, food, and dust-free workshops with high hygienic requirements.

Modular Nitrogen Generator

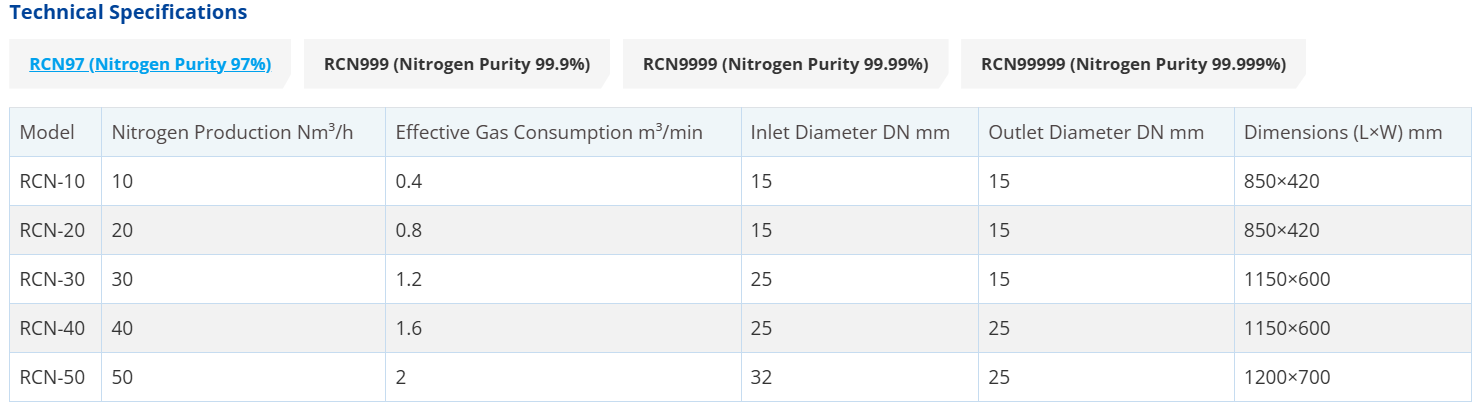

Key Parameters

Nitrogen capacity: 3-50Nm³/h

Nitrogen purity: 95%-99.999%

Customization Capability

This modular compact nitrogen generator can be designed to deliver nitrogen flow rates of 1-30 Nm³/h with purity ranging from 95% to 99.999%, based on diverse customer applications and working conditions. We can provide complete nitrogen system solutions, from air compressor to nitrogen storage tank, according to specific requirements.

Integration Capability

Our modular nitrogen generators can be integrated for use with multiple 3D printers and in laboratory settings.

Features

It adopts modular air buffer tank design.

Components are anodised and electrostatically coated so that operation safety and reliability can be promised.

The system can be integrated by simply adjusting laser module.

It adopts compact CMS filling and compression design to ensure the equipment reliability.

The installation process is easy, and most work is operated on the ground to reduce safety risks.
