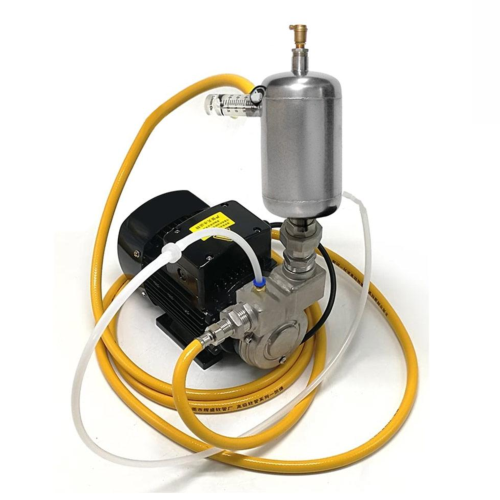

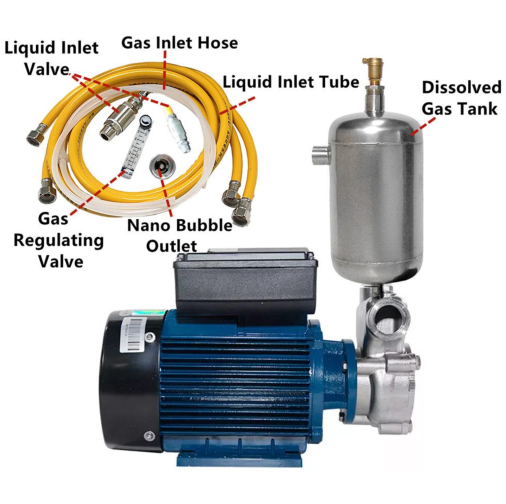

Nano Bubble Mixing Pump

Nano Bubble Mixing Pump

Functional features

1. Self-priming gas-liquid mixing pump,inhaling while absorbing water, pressurized and mixed in the pump,20μ-30μ of fine air bubbles are generated, and the gas-liquid dissolution rate is over 95%.

2. Stable performance, high efficiency and low noise.Compared with the traditional method,the gas-liquid dissolution efficiency is doubled.

3. The air flotation device can omit air compressors,various mixers,high-pressure dissolved air tanks and releasers. It can overcome the problems of unstable gas supply and churning of large bubbles in traditional methods.

4. The ozone water preparation device can save various mixers,large oxidation towers,etc. Significantly reduce equipment cost.

5. Simple structure, few parts,durable and easy to maintain. It has excellent gas-liquid mixing performance, wide application range and simple operation.

Operating conditions

• Thin, clean, low viscosity liquid;

• Ph range is 3-9;

• Liquid temperature: -15℃--+120℃;

• Maximum ambient temperature: +40℃;

• The gas-liquid volume ratio is about 1:9(the suction volume is 8-10%);

• Self-priming height is 9-NPSH (m)

Product parameters
