1.PVDF material, polyvinylidene fluoride(PVDF) is a natural, high purity material without pigments.
2.PVDF material has excellent chemical resistance and solvent resistance.

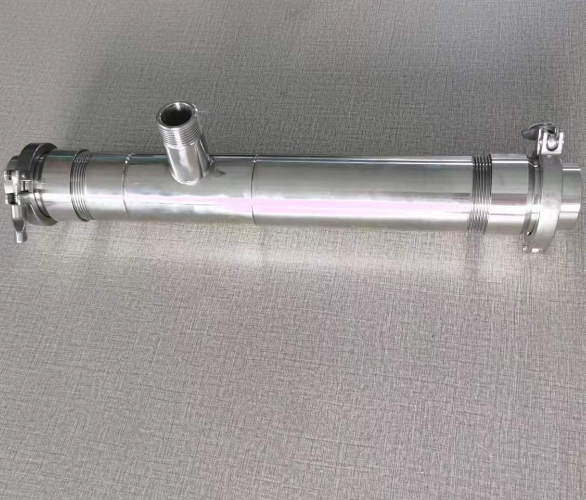

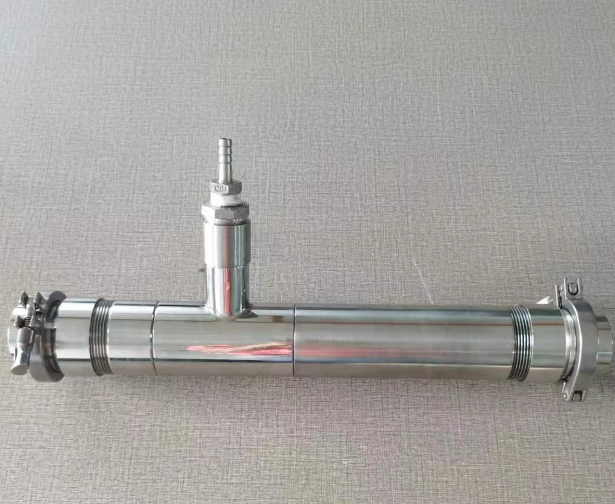

Also, have stainless steel.
Venturi Injector
Functional features
1. PVDF material, polyvinylidene fluoride(PVDF) is a natural, high purity material without pigments.
2. PVDF material has excellent chemical resistance and solvent resistance.
3. As a fluoroplastic, the heat resistance of PVDF is higher that that of all other plastics, and the heat resistance can be as high as 148℃.
4. PVDF is a hhighly crystalline hard material with excellent wear resistance, high mechanical strength, impact resistance and long service life.
5. The product structure is compact, and it is fast and convenient to use.
6. High efficiency can reach more than 25% , low energy consumption and low noise.
Product parameters

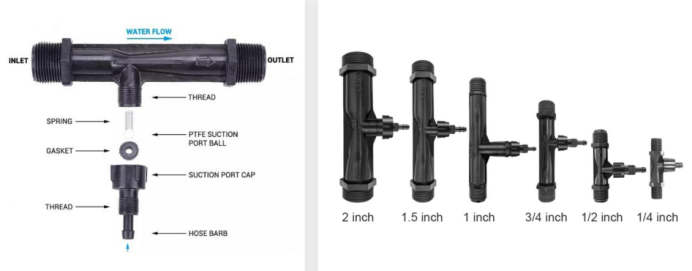

Size | Water pressure(Mpa) | Inspiratory capacity(M3/Hr) | Overall length(mm) | Water flow rate(M3/Hr) | Material |
1/4inch | 0.1-0.2 | 1-3 | 57 | 0.05-0.2 | PVDF |
1/2inch | 0.25-0.4 | 4-7 | 100 | 0.2-1 | PVDF |
3/4inch | 0.25-0.5 | 7.5-10 | 152 | 1-3 | PVDF |
1inch | 0.25-0.5 | 11-15 | 230 | 3-10 | PVDF |
1.5inch | 0.25-0.6 | 22-30 | 275 | 10-25 | PVDF |
2inch | 0.3-0.7 | 37-49 | 295 | 25-50 | PVDF |
