Rotameter Flow

Rotameter Flow

Product introduction

1. When the fluid moves from bottom to top in the conical tube, a pressure difference is generated above and below the float, causing the float to rise.

2. When this pressure difference is in force balance with the float’s gravity,buoyancy, and viscous forces, the float is in a resting position.

3. When the flow rate changes,the flow velocity of the fluid flowing through the annular gap between the conical tube and the float changes, the pressure difference between the upper and lower floats changes accordingly, and the float moves up and down.

Functional features

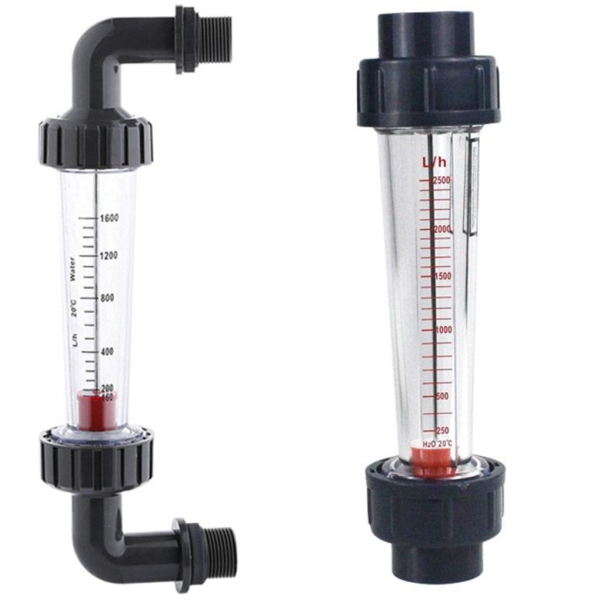

LZS series plastic rotor flowmeter is mainly used for the measurement of one-way non pulsating liquid conveyed in engineering plastic pipeline.

1.Simple structure, light weight,corrosion resistance, not easy to break, non-toxic and tasteless, easy to use.

2.Mainly used in chemical, light industry,medicine, food, water treatment and other industries.

3. ±4% accuracy,accurate measurement,economical price,high cost performance.

4. The actual flow scale can provide the pressure,density and viscosity of different flow, and solve the problem of display value correction.

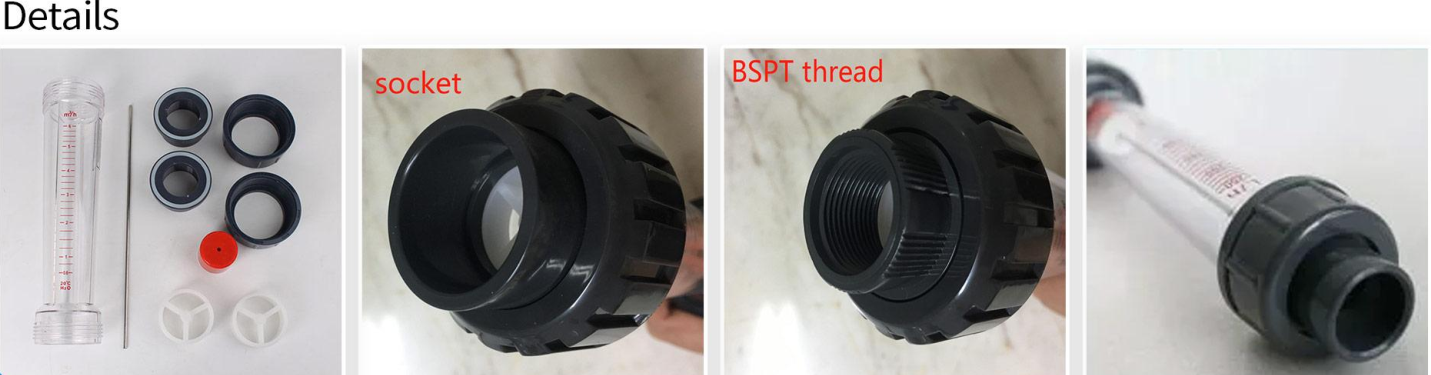

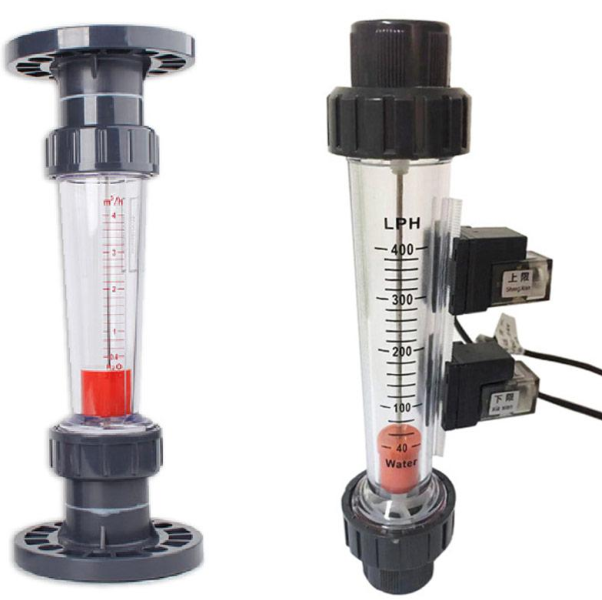

5. Fixed options: thread, flange,clamp.
